Optimizing DaVinci Resolve for LucidLink

  • Updated

Overview

This article serves as a basis for optimizing DaVinci Resolve Studio for optimal playback when project media is located on a LucidLink Filespace. This should be a base configuration and tweaked from there as needed since every environment is unique.

This article applies to macOS, Linux and Windows versions of DaVinci Resolve Studio. Mileage may vary with DaVinci Resolve (non-Studio) since it does not support GPU hardware acceleration.

Recommendations

LucidLink Cache Settings

It is advised that your LucidLink Filespace Cache lives on SSD or NVMe storage locally attached to the workstation for maximum performance. If you Operating System drive is SSD or NVMe then you will have this configuration with the default settings.

Network Connectivity

When working with media assets, especially high bitrate footage, it is imperative that you provide a stable, low latency network connection to the workstation for best performance. For this workflow, we would always advise using Ethernet where possible since WiFi introduces latency overheads and is generally less performant than Ethernet.

DaVinci Resolve Configuration

Media Storage Preferences

DaVinci Resolve Studio can access your LucidLink Filespace as a local Filesystem and should be configured from the Preferences > System > Media Storage configuration page.

DaVinci Resolve will store your CacheClip and Gallery stills at the Top location in the list, by default. You should ensure that your Filespace mountpoint is not the Top Media Storage Location in the list.

Direct I/O should be disabled to ensure that Operating System and File System buffers are  used, this should increase performance.


Render Cache

Users typically see a performance improvement when the Render Cache is set to Smart. This will dynamically and automatically flag clips on the Timeline that Resolve thinks would benefit from caching. This is then decoded and re-encoded during playback to your CacheClip location using your selected Cache settings.

Setting this to User allows you to manually select clips and click "Render Cache Color Output"

You can set this from Playback > Render Cache > Smart


This is not the same as Pinning in LucidLink or the LucidLink Cache.

Automatic audio waveform and thumbnail generation

To take advantage of the streaming capabilities built into LucidLink, it may be necessary to disable ‘Display audio waveforms’ and set ‘Thumbnail View’ to ‘none’ in Resolve 19.
If enabled, Resolve will pre-read all video assets to draw thumbnails and audio waveforms on the screen. This negates the utility of streaming on-demand.

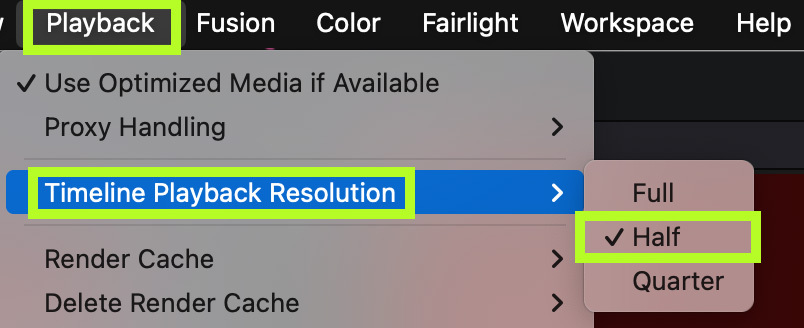

Timeline Proxy Resolution

Changing this does not lower the bandwidth required to read the Source media from the Filespace or LucidLink Cache location. It is simply the resolution at which the Source is decoded in the Preview window.

You may benefit from setting this to Half or Quarter but typically only when the hardware of your workstation is struggling to playback. This is not related to the LucidLink Filespace performance.

You can set this from Playback > Timeline Proxy Resolution > Half


Disk Database Location

If you are using a Disk Database in DaVinci Resolve for your projects, you should not store this on your LucidLink Filespace as it may impact performance. This should be stored on fast locally attached storage such as an SSD or NVMe drive.



Known Issues

Thumbnail generation and Offline Media

Applies to: Resolve Studio v18+ on Linux only

Description: Thumbnails show offline Media in the Timeline and Media tab source browser. When attempting to Deliver, Resolve warns that some media is offline. Delivering does result in no media offline however and the issue appears to be cosmetic as the media is in fact Online. This has been raised with Blackmagic Design and it only appears to affect DaVinci Resolve 18 on Linux. Resolve 17 does not exhibit this behaviour.
