Google Cloud Platform (GCP)

  • Updated

Service account creation

We recommend creating a service account to handle the interaction between LucidLink and the Google Cloud Platform.

1. Login to your GCP Console.

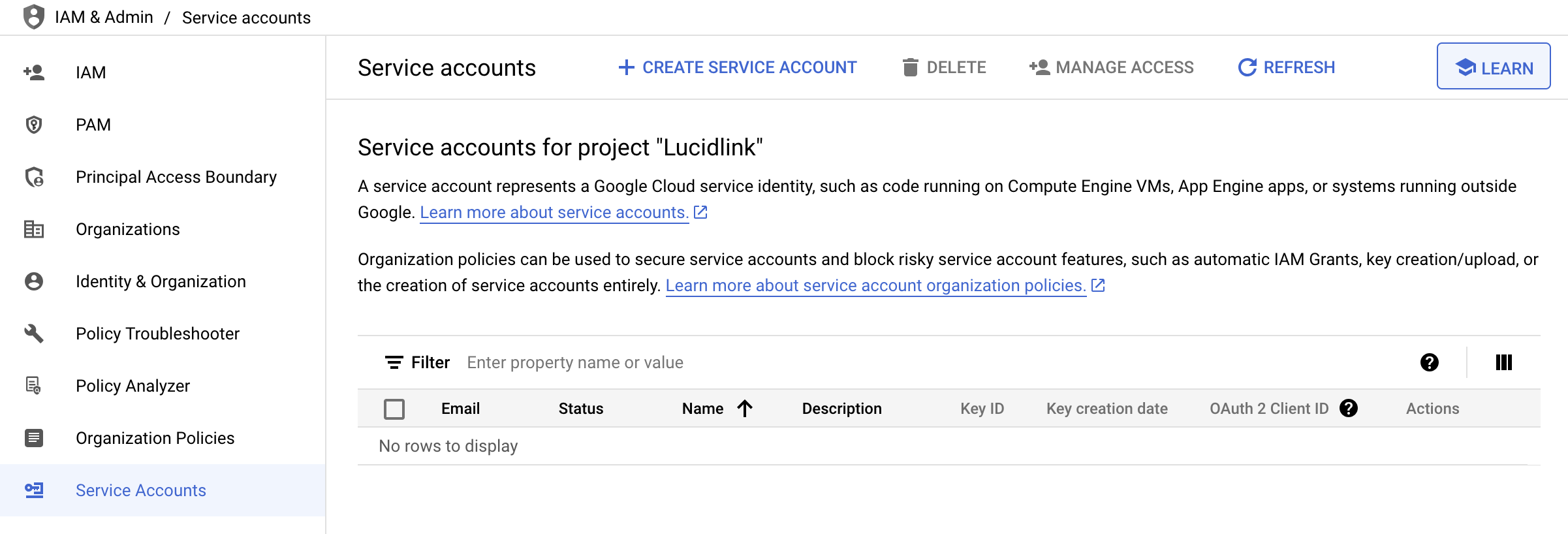

2. Within the navigation menu at the top left, select IAM & Admin, then Service accounts. Then select Create Service Account.

1 - service accounts .png

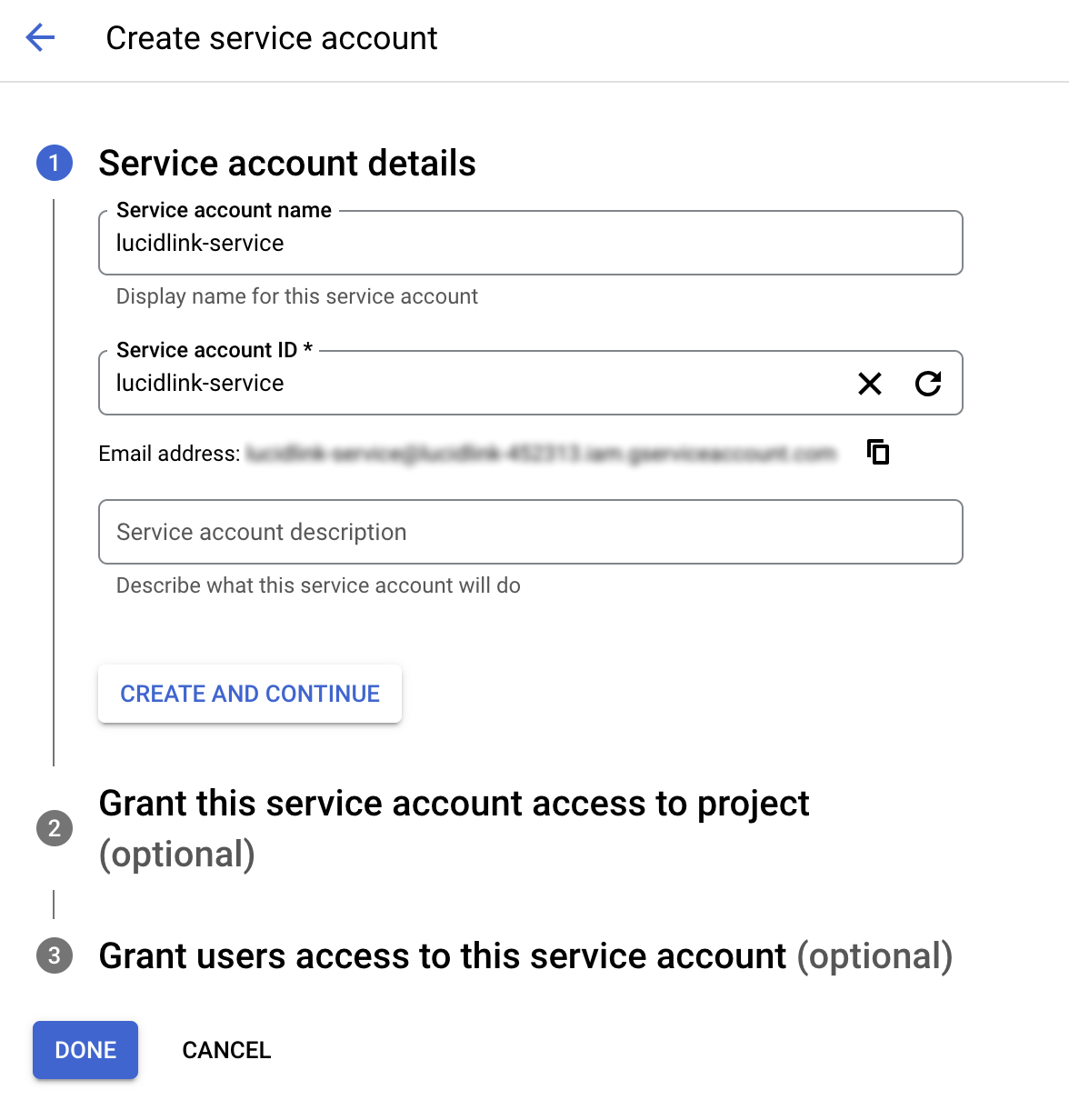

3. Choose a Service account name, click Create and Continue.

2 - create service account 1.png

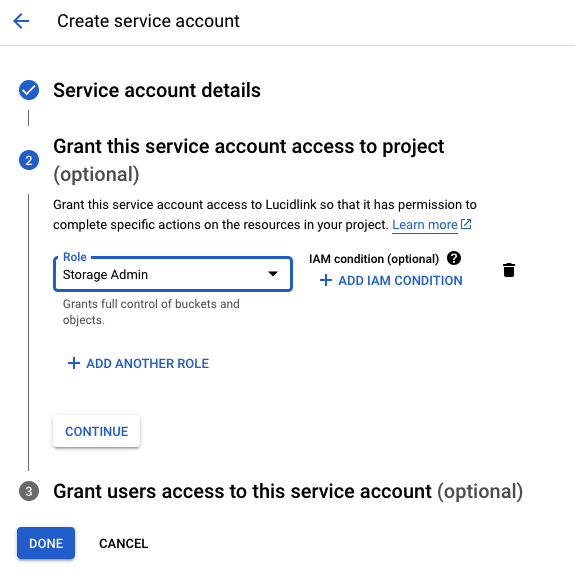

4. Grant the appropriate Role to this account. In this example, we have chosen the built-in Storage Admin role. Once the role has been chosen, press Done to continue.

3 - grant rights - storage admin.png

Access Key generation

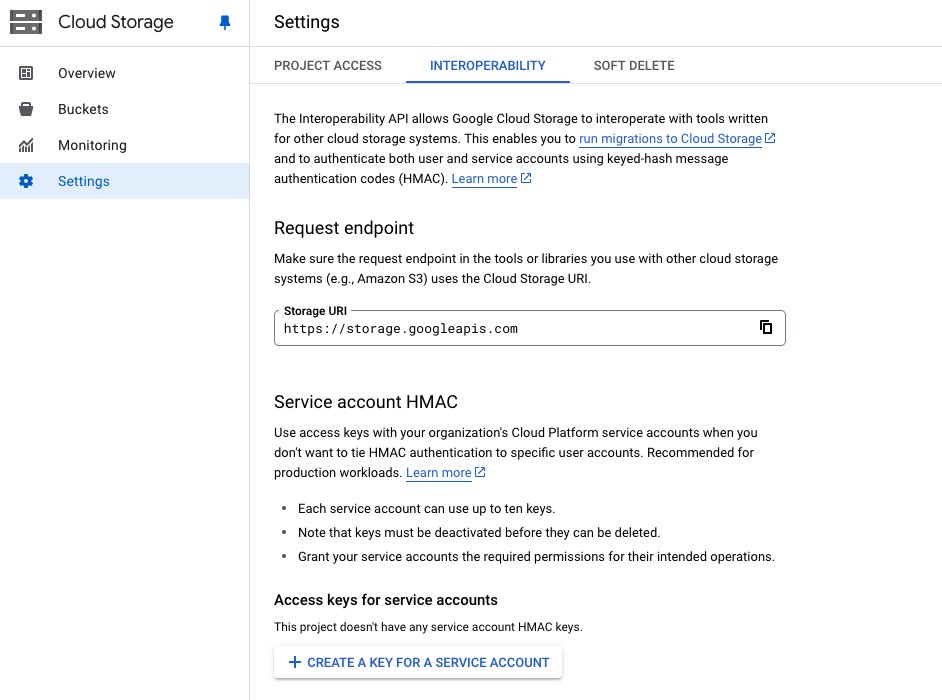

Google Cloud provides S3 Compatible Storage access-key and secret-keys via their XML APIs and Interoperability mode. To generation authentication keys for your service account, navigate to Cloud Storage, select Settings and Interoperability tab.

At the section Service Account HMAC, click on Create a key for a service account.

1 - cloud storage gcp.png

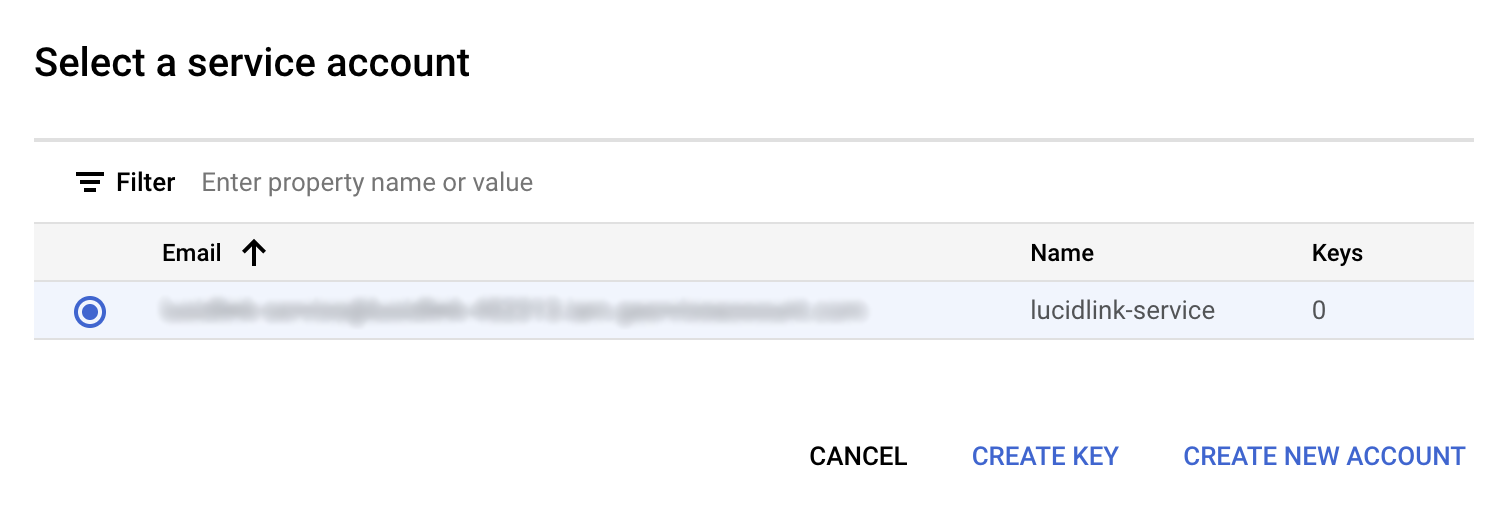

Select a service account and choose Create key.

5 - select service acct.png

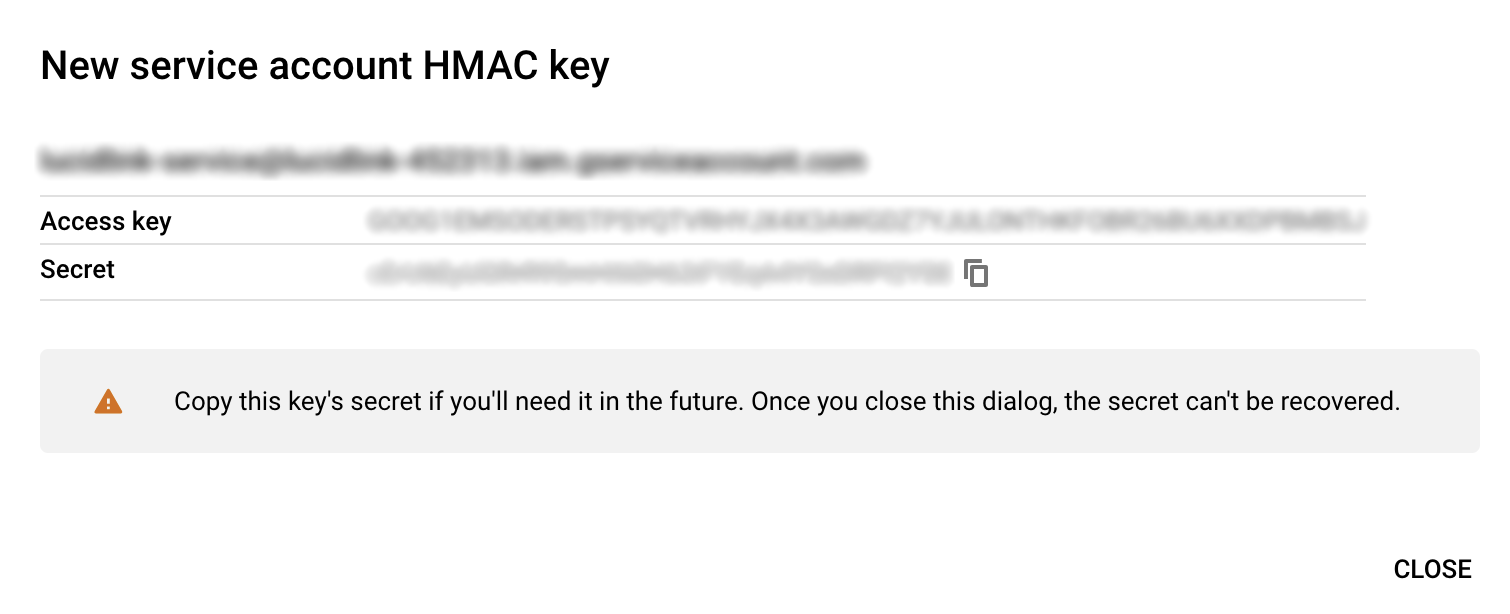

The access key and secret are now generated. Please note that the dialog window is the only time you can access the secret.

6 - copy keys.png

Once the keys are generated, you can create your LucidLink Filespace (see section Filespace creation).

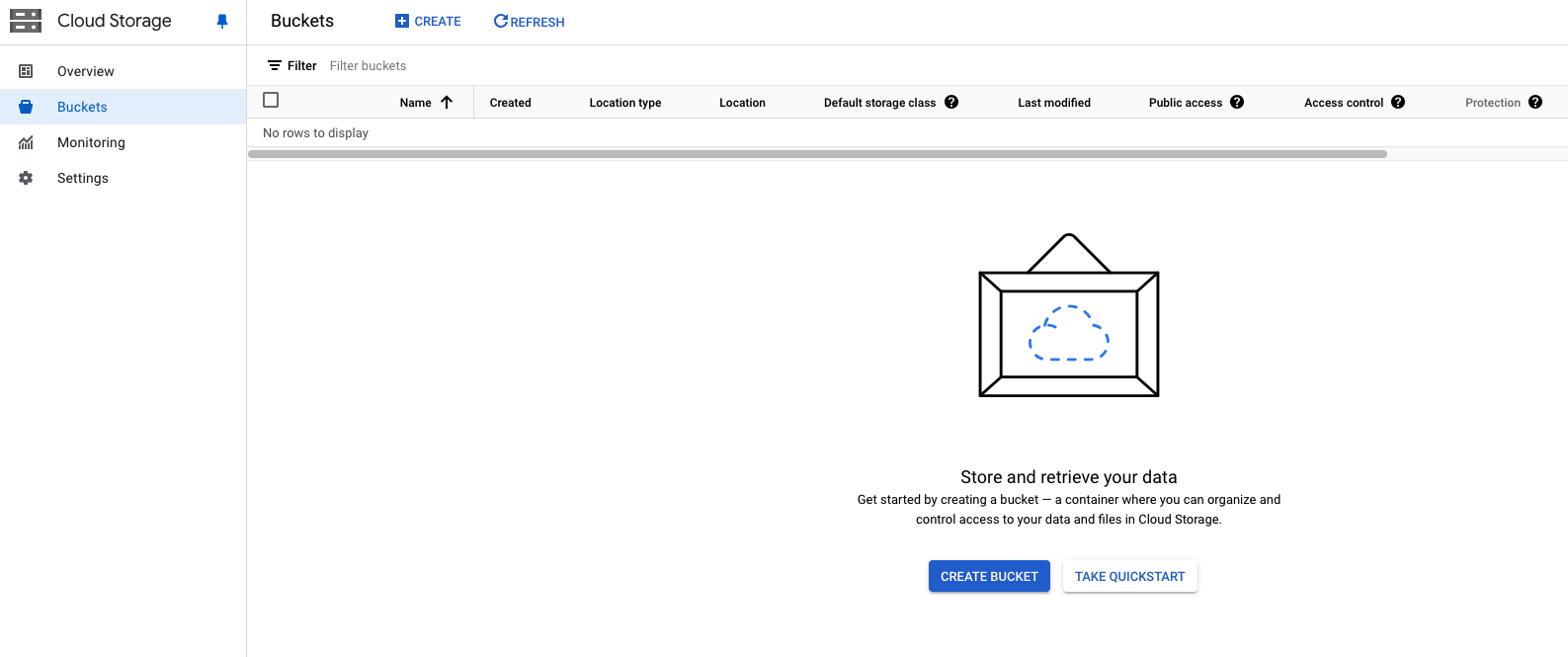

LucidLink will create a bucket during the Filespace creation process. If you prefer, you can also create the bucket in the correct region within Google Cloud Platform by selecting Cloud Storage, then Buckets.

3 - bucket page.png

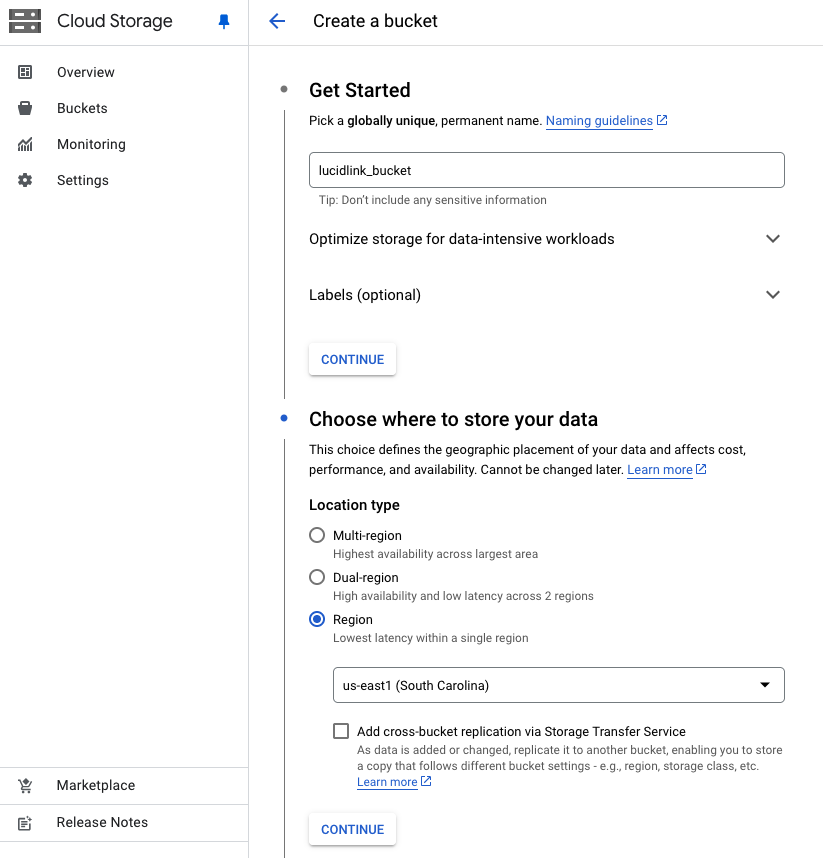

Click Create bucket, and specify a unique Name (please only use lowercase letters, digits, and hyphens). Choose Region and Location along with Create to submit.

4 - create bucket wizard.png

Filespace creation

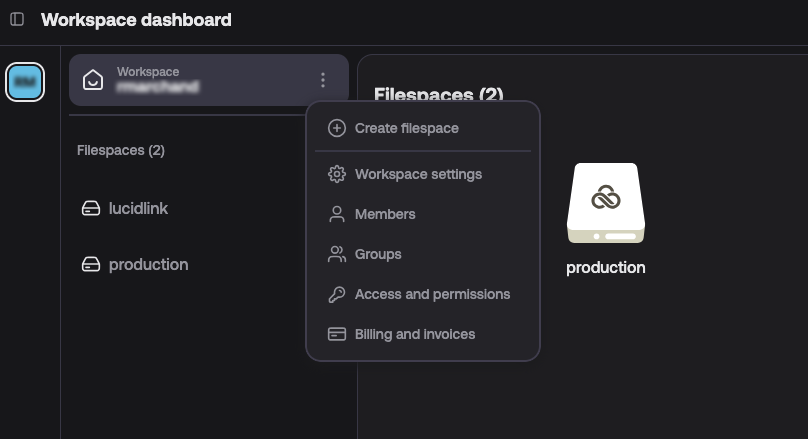

Please login to our Web App or through the desktop application. Click on "Create Filespace":

1 - Create Filespace.png

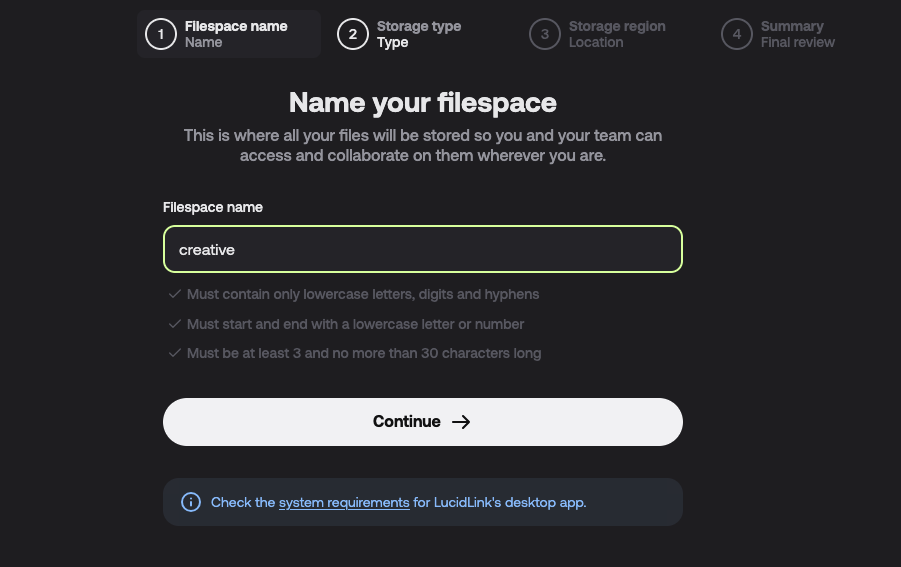

Enter the name of your Filespace:

2 - Select your FS name.png

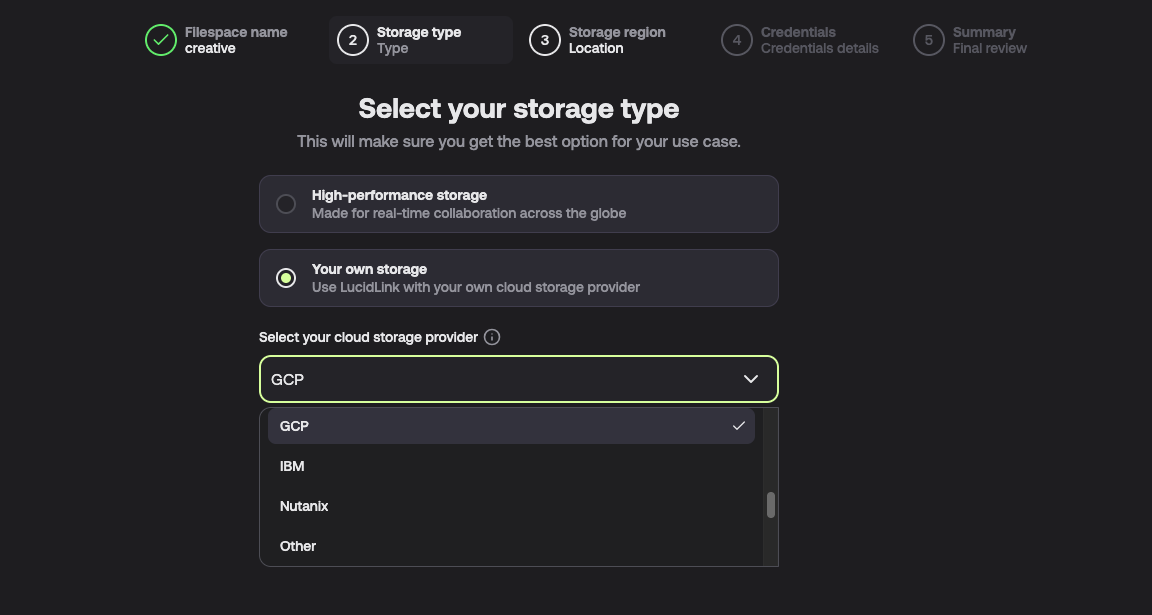

Select "Your own storage" and choose GCP:

3 - select storage type.png

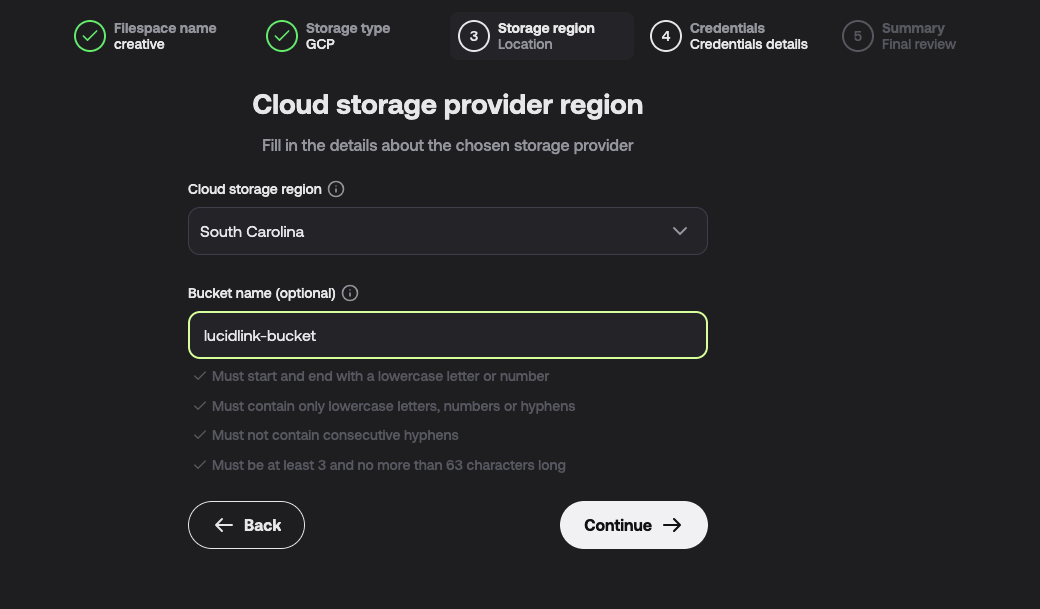

Select the cloud storage region. You can enter the name of the container you have created. LucidLink automatically creates a bucket based on a globally unique identifier if no container name is provided in the "Bucket name" field.

4 - region and bucket.png

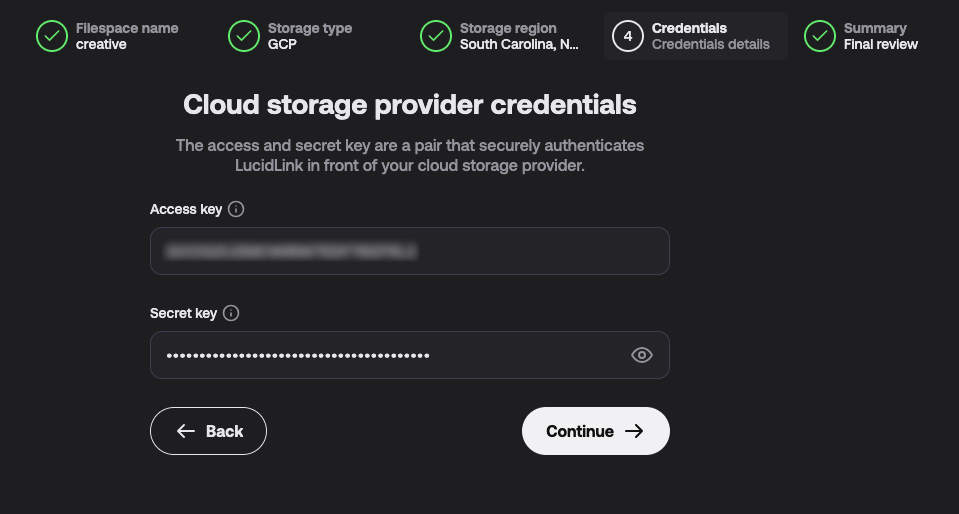

Enter the Access key and Secret key previously generated (see the Access key generation section)

5 -access keys.png

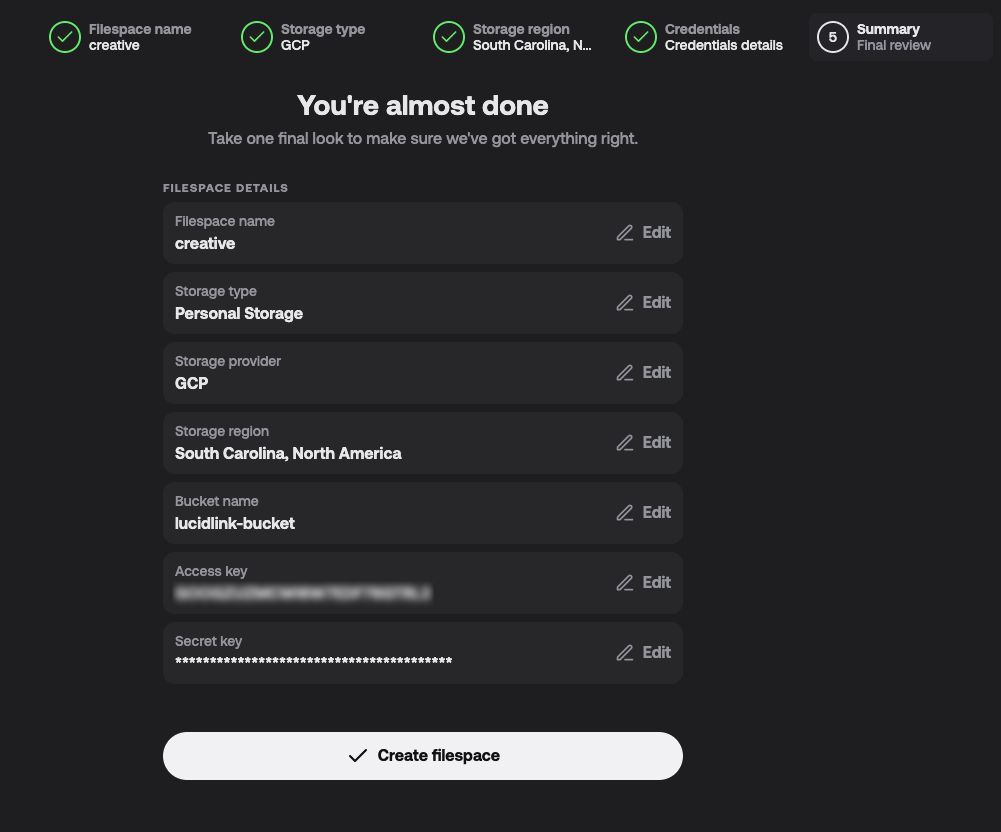

Finally, once you have confirmed all the settings are correct, you can create your Filespace.

6 - confirmation.png

Please contact LucidLink Support if you encounter any challenges.
