1. Background & Software Overview
12d Model is a highly sophisticated, industry-standard 3D CAD and geospatial software solution widely utilized within Australia, New Zealand, and the UK for civil engineering, surveying, terrain modeling, and infrastructure design. Because the application handles massive datasets such as dense point clouds and complex road alignments, it relies heavily on high-frequency, file-based read/write operations directly within the active project directory.
Historically designed as a desktop-bound filesystem application, running 12d Model over sync and share cloud synchronization environments without deep low-level file system integration regularly results in file duplication, severe synchronization bottlenecks, and potential data corruption.
The Architectural Distinction: 12d Model vs. 12d Synergy
To enable cross-site collaboration, the vendor offers an optional, separate product ecosystem known as 12d Synergy. For infrastructure sizing and deployment planning, it is critical to understand how these two components handle data layers differently:
| Criterion | 12d Model | 12d Synergy |
| Core Function | The primary CAD/engineering tool. Generates physical geometries, surface meshes, alignments, and calculations. | A separate Document Management System (DMS) providing data control via a custom check-in/check-out workflow. |
| Data Storage Layer | Operates directly on standard file structures and local or shared network folders. | Stores data assets inside a centralized server database/cloud repository. Assets must be mirrored locally to run. |
| Operational Design | Real-time, active file access. Restricts concurrent multi-user editing via a localized, primitive lock file within the project directory. | An explicit manual 'Check-out' streams or copies files into a local cache directory on C:\. It completely blocks server access for other team members until checked back in. |
LucidLink Infrastructure for 12d Model Deployments
With a correctly structured LucidLink filespace implementation, organizations can optimize their data management workflows by allowing engineering teams to work live, simultaneously, and directly inside native 12d Model projects across different geographical boundaries. LucidLink acts as a global, high-performance cloud NAS, handling block-level on-demand streaming and synchronization instantly. This collaborative approach provides a streamlined alternative for data access, minimizing local transfer delays and simplifying the overall directory infrastructure for multi-site project delivery.
2. The File-Locking Challenge Explained
The inherent lock mechanism built into 12d Model is conceptually straightforward: the moment an engineer opens a project directory, the software instantly drops a binary file named lock.4d into the project folder root. This system file contains basic plain-text strings identifying the active Windows username and the host computer machine name. Whenever a second user attempts to initialize access to that same project directory, 12d Model scans the folder layer, detects the presence of lock.4d, parses its contents, and surfaces the standardized protection prompt: 'Project locked by User X on PC-01', rejecting further write permissions.
In geographically distributed cloud systems, a severe race condition emerges without real-time file system intervention. If two engineers initialize access to the same project within close temporal proximity, both local instances will execute a write operation to create lock.4d locally, before the cloud synchronization engine has updated metadata states across sites. This results in overlapping file overwrites, localized locking loops, and unsafe multi-user access states.
Step 1: Enforcing Native UNC Path Architectures
It is strongly recommended to fully retire the use of traditional mapped drive letters (e.g., mapping the space to L:\). Windows and many AEC-specific applications handle locking layers for mapped drives with distinct behavior. Instead, configure the LucidLink filespace strictly using its native UNC path format:
| \\lucidlink\filespace;L: |
Log in to your LucidLink ControlPanel as an administrator for gloabal defaults. Under your specific Filespace settings, navigate to Windows Mount Point and set it using the format \\lucidlink\filespace. To assign a specific drive letter, append it to the path like this: \\lucidlink\filespace;L:
Step 2: Assigning File Locking Rules for 12d Specific Extensions

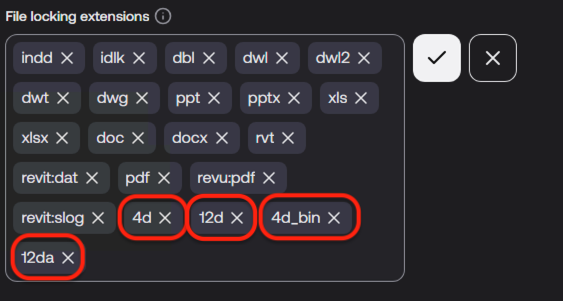

Log in to your LucidLink Control Panel as an administrator (or leverage the command-line interface). Under your specific Filespace settings, in the global defaults tab, navigate to the "File Locking Extensions" and register the following explicit extensions to enforce real-time distributed locking:
- 4d: Intercepts and coordinates the active creation, manipulation, and release of the temporary project system lock file (lock.4d).
- 12d: Protects the core model directory assets, geometry strings, and primary structural files from overlapping modification.
- 12da: Secures ASCII geometric model export and exchange strings during heavy multi-site data ingestion.
- 4d_bin: Safeguards the application's underlying internal database and binary structures from structural out-of-order writes.
Technical Summary for Infrastructure Engineers
By combining LucidLink Global File Locking rules with direct UNC path routing, LucidLink flawlessly replicates the deterministic locking topology of a physical, local on-premise SAN environment for 12d Model. This completely satisfies the application's strict file system security constraints while unlocking effortless global cloud performance.
